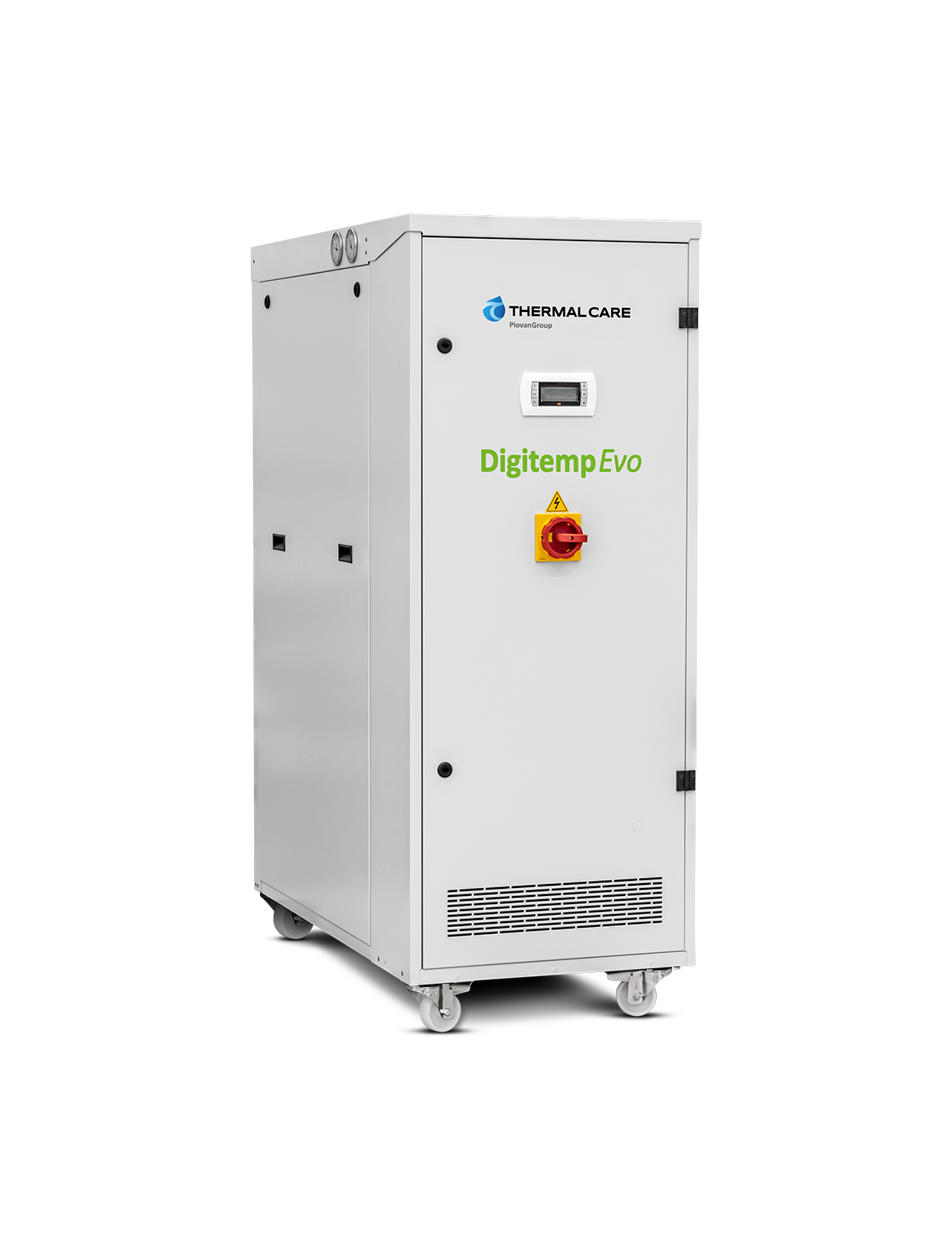

DigitempEvo

THERMOREFROIDISSEUR À CONDENSATION PAR EAU
  • Cout de fonctionnement réduit grace à la technologie freecooling
  • High flexibility with a wide temperature range from 5 to 90°C and possibility to control two temperatures
  • Compresseur scroll digital

    Please insert your data, we will send you an e-mail with the link to download the file.

    Contactez nous

    Gamme: 092 – 162 – 222 – 382 – 502
    Gaz frigorifique: R410A
    Puissance de refroidissement: 9 – 50 kW
    Puissance de chauffe: 6 – 36 kW

    1—cooling: the machine works as a water cooled chiller; the internal refrigerant circuit and high efficiency scroll compressor are activated to produce the required cooling power.

    2—heating: the electrical heating elements are activated and the process water is heated up to 90°C so that the mould can reach the right working conditions.

    3—free-cooling: if the running conditions are favourable, the cooling of the process water can be achieved with just a heat exchanger, between the process and condensing unit.

    Avantages:

    • Flexibilité de distribution d’eau de 5 à 90°c pour chaque circuit (dans la configuration double pompe, l’appareil contrôle le process de refroidissement avec 2 températures différentes)
    • Réduction de consummation d’énergie grâce à la technogie compresseur scroll Digital, qui permet de moduler la puissance de 10% à 100%, économisant plus de 35% de la consummation électrique compare à une unite standard
    • Contrôle temperature précis: détendeur électronique, compresseur Digital Scroll, contrôleur PLC (haute precision +/- 0,3°C)
    • Cout de fonctionnement réduit grace à la technologie freecooling
    • Echange de chaleur haute efficacité, évaporateur et condenseur à plaque brasé en inox316L
    • Longue durée de vie et robustesse
    • Design compact
    • Utilisation facile, affichage clair de la temperature d’eau et des alarmes

    En savoir plus
    Not available in:
    CN, MO, HK, BR, AR, BO, CL, CO, EC, PY, PE, UY, VE
